Match That Bar Chart - Questions

The Match That Bar Chart Concept Builder is comprised of 48 questions. The questions are divided into 16 different question groups and spread across three levels of difficulty. Questions in the same group are rather similar to one another in one way or another. The Concept Builder is coded to select at random a question from each group until a student is successful with that group of questions.

There are three different difficulty levels in the Concept Builder. Those three levels are described as follows:


• Apprentice Difficulty Level: Question Groups 1-4. The easiest (so we think) four situations ... a great warm-up
• Master Difficulty Level: Question Groups 5-8. Includes eight situations to analyze, all unique from those in the Apprentice level and (in general) slightly more complicated.
• Wizard Difficulty Level: Question Groups 9-16. The eight most difficult situations to analyze.

The questions from each group are shown below. Teachers are encouraged to view the questions in order to judge which difficulty levels are most appropriate for their classes. All levels can be done without any redundancy; we recommend starting with the Apprentice. At the same time, any of the levels can be done at the exclusion of the others.

The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which the document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.




Apprentice Difficulty Level
Question Group 1
Question 1

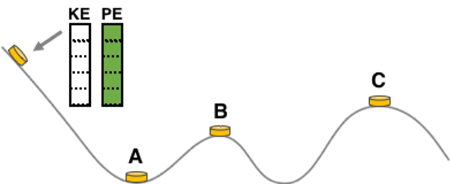

A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 2

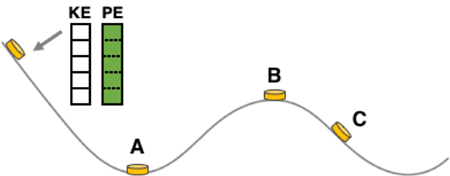

A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 3

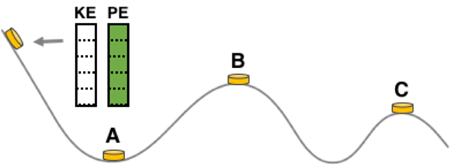

A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question Group 2
Question 4
A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 5
A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 6
A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 3
Question 7
A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 8
A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





Question 9
A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question Group 4
Question 10
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 11
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 12
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 5
Question 13
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 14
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





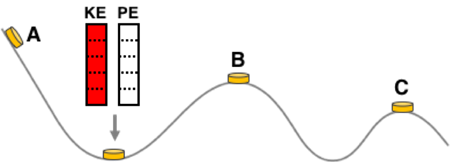

Question 15
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question Group 6
Question 16
A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




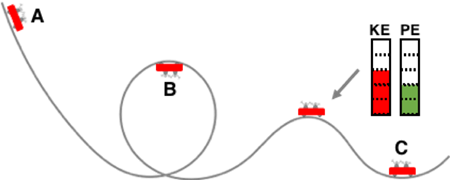

Question 17
A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 18

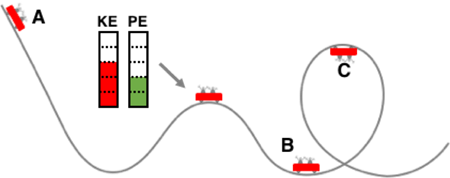

A coaster car rolls along a "friction-free" track. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 7

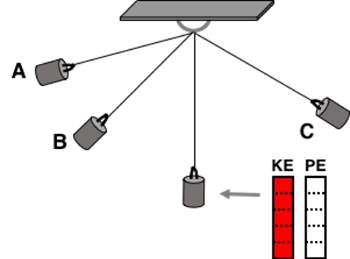

Question 19
A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



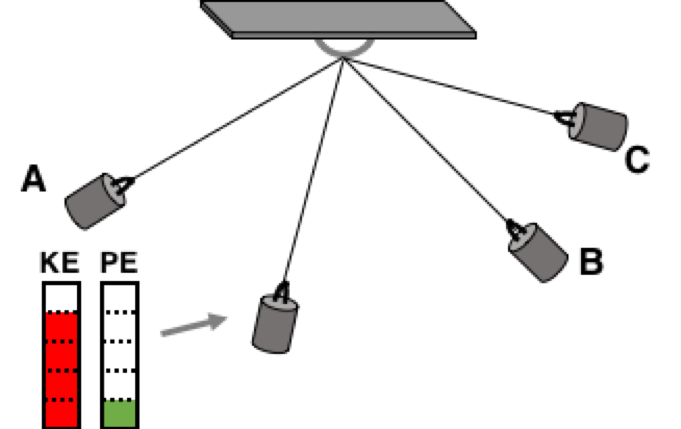

Question 20
A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 21

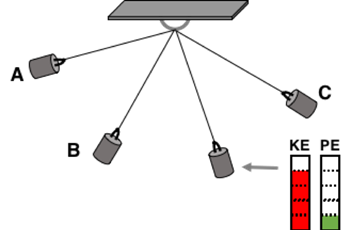

A pendulum bob swings along its characteristic arc as shown. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question Group 8
Question 22
A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 23

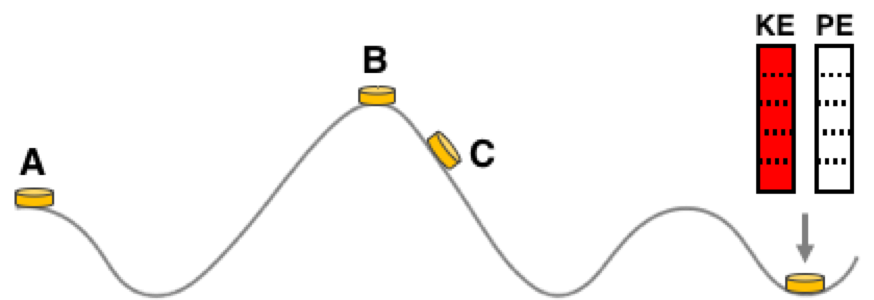

A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.



Question 24

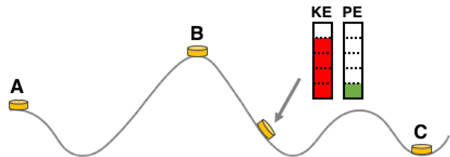

A disk slides along a "friction-free" surface. Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 9
Question 25
A sledder coasts over a series of hills before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





Question 26

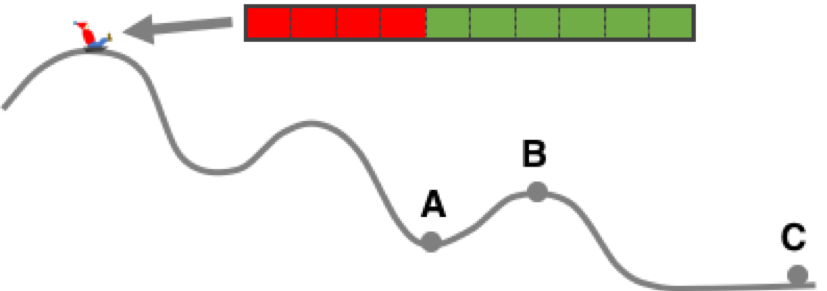

A sledder coasts over a series of hills before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.








Question 27

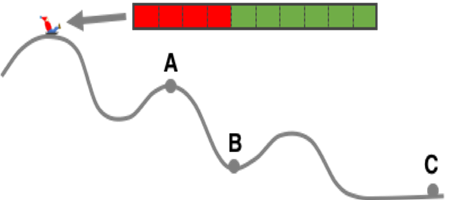

A sledder coasts over a series of hills before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





Question Group 10
Question 28

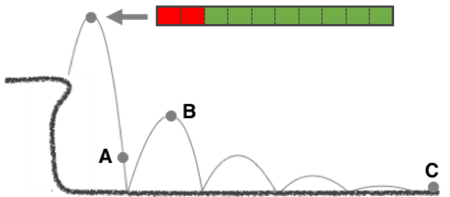

A ball is projected at an angle from the top of a cliff and bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 29
A ball is projected horizontally from the top of a cliff and bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 30

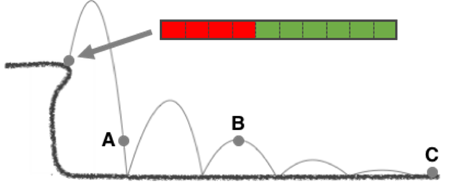

A ball is projected horizontally from the top of a cliff and bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 11
Question 31

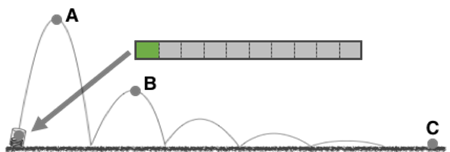

A spring-loaded launcher shoots a ball at an angle; it bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 32

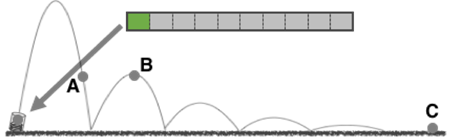

A spring-loaded launcher shoots a ball at an angle; it bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 33

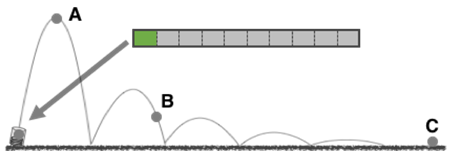

A spring-loaded launcher shoots a ball at an angle; it bounces several times before eventually stopping (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





Question Group 12
Question 34

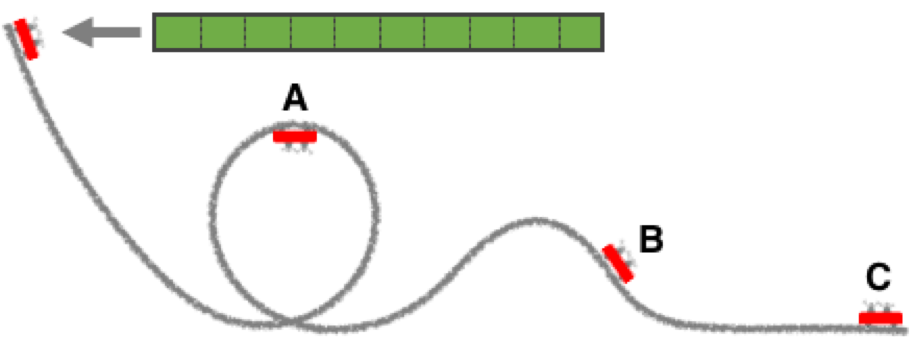

A roller coaster car travels along a track until it reaches the braking section and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 35

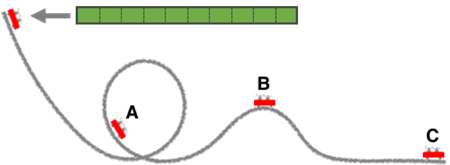

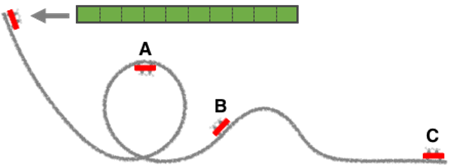

A roller coaster car travels along a track until it reaches the braking section and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.


Question 36
A roller coaster car travels along a track until it reaches the braking section and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question Group 13
Question 37

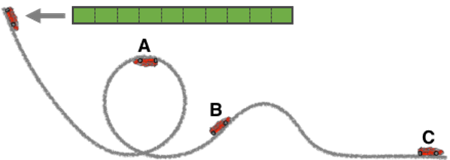

A toy car rolls along a track until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 38

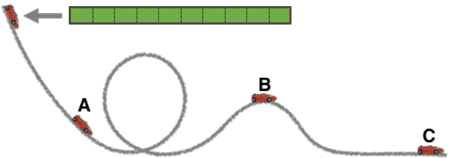

A toy car rolls along a track until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 39

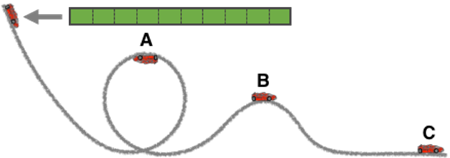

A toy car rolls along a track until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question Group 14
Question 40
A disk glides along a rough surface until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 41

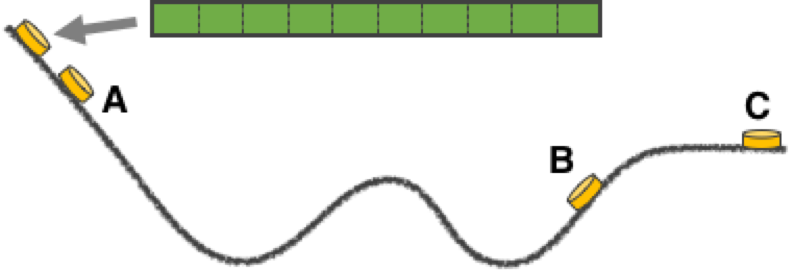

A disk glides along a rough surface until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.


Question 42

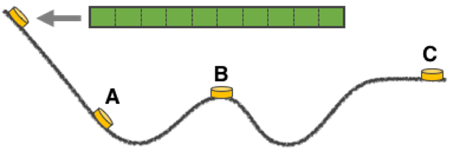

A disk glides along a rough surface until it finally slows to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.








Question Group 15
Question 43
A toy car is propelled from a spring-loaded launcher and slides along a track until it collides with a barrier and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 44
A toy car is propelled from a spring-loaded launcher and slides along a track until it collides with a barrier and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.




Question 45
A toy car is propelled from a spring-loaded launcher and slides along a track until it collides with a barrier and is brought to a stop (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.







Question Group 16
Question 46
A toy car rolls along a track and up a hill to its highest point (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.






Question 47

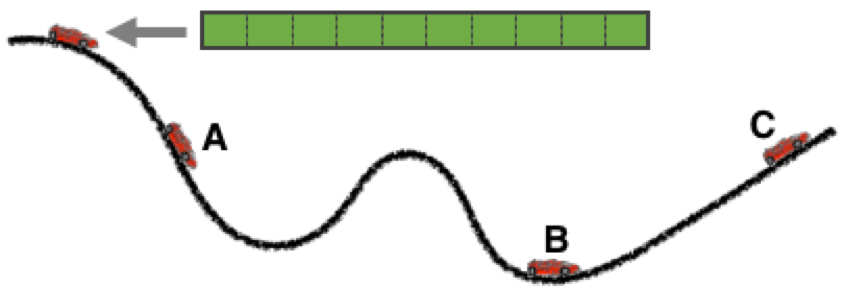

A toy car rolls along a track and up a hill to its highest point (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.





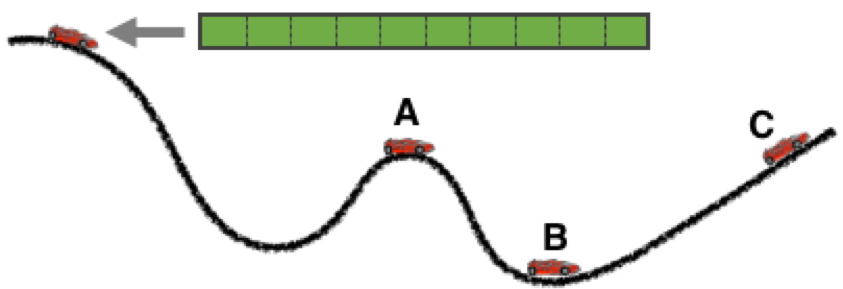

Question 48
A toy car rolls along a track and up a hill to its highest point (C). Use the given Energy Bar Chart to identify the appropriate Bar Charts for locations A, B, and C.
