Being Impulsive About Momentum Change
The Being Impulsive About Momentum Change Concept Builder is comprised of a bank of 54 questions that are delivered to the learner across three different difficulty levels. Each of the three levels has the same emphasis, but the difficulty level of the questions are noticeably different. In the first difficulty level -
Apprentice - you will be provided the initial and final momentum of an object and asked to determine the impulse or the momentum change or the force-time values that would cause such a momentum change. In the second difficulty level -
Master - you will be provided the mass and velocity of the object and asked to determine the collision parameters that would cause such a momentum change; answer options vary in type, including a mix of impulse, momentum change, and force-time values. In the third difficulty level -
Wizard - you will have to identify two different sets of collision parameters that would collectively cause the given momentum change; answer options vary in type, including a mix of impulse, momentum change, and force-time values.
The three difficulty levels in this Concept Builder are summarized as follows:
- Apprentice: Question Groups 1-6. Answer options are of the same type for each question.
- Master: Question Groups 7-12. Answer options vary in type for each question.
- Wizard: Question Groups13-18. Answer options vary in type for each question. Must pick two different collision parameters.
The questions and images used in this Concept Builder are shown below. Teachers are encouraged to view the questions in order to judge which activity is most appropriate for their classes.
The Physics Classroom grants teachers and other users the right to print these questions for private use. Users are also granted the right to copy the text and modify it for their own use. However, this document should not be uploaded to other servers for distribution to and/or display by others. The Physics Classroom website should remain the only website or server from which this document is distributed or displayed. We also provide a PDF that teachers can use under the same conditions. We have included a link to the PDF near the bottom of this page.
Being Impulsive About Momentum
Apprentice Difficulty Level
Question Group 1
Question 1
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +15 N•s
b. Impulse = +4 N•s
c. Impulse = +7.5 N•s
d. Impulse = +8 N•s
e. Impulse = +30 N•s
Question 2
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +48 N•s
b. Impulse = +3 N•s
c. Impulse = +6 N•s
d. Impulse = +4 N•s
e. Impulse = +12 N•s
Question 3
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +10 N•s
b. Impulse = +5 N•s
c. Impulse = +3.6 N•s
d. Impulse = +2 N•s
e. Impulse = +50 N•s
Question Group 2
Question 4
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +2 N•s
b. Impulse = -8 N•s
c. Impulse = +6 N•s
d. Impulse = -16 N•s
e. Impulse = -4 N•s
Question 5
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +1.3 N•s
b. Impulse = -2.7 N•s
c. Impulse = +4 N•s
d. Impulse = -8 N•s
e. Impulse = -24 N•s
Question 6
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = -15 N•s
b. Impulse = +4 N•s
c. Impulse = +1 N•s
d. Impulse = -3 N•s
e. Impulse = -75 N•s
Question Group 3
Question 7
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +3 kg•m/s
b. ∆p = +6 kg•m/s
c. ∆p = +12 kg•m/s
d. ∆p = +15 kg•m/s
e. ∆p = +30 kg•m/s
Question 8
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +4 kg•m/s
b. ∆p = +10 kg•m/s
c. ∆p = +20 kg•m/s
d. ∆p = +50 kg•m/s
e. ∆p = +100 kg•m/s
Question 9
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +4 kg•m/s
b. ∆p = +10 kg•m/s
c. ∆p = +16 kg•m/s
d. ∆p = +50 kg•m/s
e. ∆p = +64 kg•m/s
Question Group 4
Question 10
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = -12 kg•m/s
b. ∆p = -24 kg•m/s
c. ∆p = -8 kg•m/s
d. ∆p = -4 kg•m/s
e. ∆p = -36 kg•m/s
Question 11
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = -9 kg•m/s
b. ∆p = -15 kg•m/s
c. ∆p = -18 kg•m/s
d. ∆p = -30 kg•m/s
e. ∆p = -36 kg•m/s
Question 12
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = -8 kg•m/s
b. ∆p = -16 kg•m/s
c. ∆p = -32 kg•m/s
d. ∆p = -64 kg•m/s
e. ∆p = -128 kg•m/s
Question Group 5
Question 13
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +2 N, ∆t = 3 s
b. F = +6 N, ∆t = 2 s
c. F = +9 N, ∆t = 2 s
d. F = +9 N, ∆t = 1 s
e. F = +3 N, ∆t = 1 s
Question 14
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +10 N, ∆t = 2 s
b. F = +5 N, ∆t = 1 s
c. F = +1 N, ∆t = 5 s
d. F = +4 N, ∆t = 1 s
e. F = +20 N, ∆t = 5 s
Question 15
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +3 N, ∆t = 9 s
b. F = +9 N, ∆t = 2 s
c. F = +12 N, ∆t = 3 s
d. F = +18 N, ∆t = 6 s
e. F = +36 N, ∆t = 3 s
Question Group 6
Question 16
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +2 N, ∆t = 5 s
b. F = +2 N, ∆t = 10 s
c. F = +5 N, ∆t = 1 s
d. F = +10 N, ∆t = 2 s
e. F = +13 N, ∆t = 2 s
Question 17
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +1 N, ∆t = 4 s
b. F = +2 N, ∆t = 6 s
c. F = +3 N, ∆t = 2 s
d. F = +8 , ∆t = 6 s
e. F = +12 N, ∆t = 2 s
Question 18
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +3 N, ∆t = 12 s
b. F = +6 N, ∆t = 4 s
c. F = +12 N,∆ t = 4 s
d. F = +24 N, ∆t = 4 s
e. F = +24 N, ∆t = 6 s
Master Difficulty Level
Question Group 7
Question 19
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +12 N•s
b. Impulse = +24 N•s
c. ∆p = +6 kg•m/s
d. F = +6 N, ∆t = 2 s
e. F = +24 N, ∆t = 4
Question 20

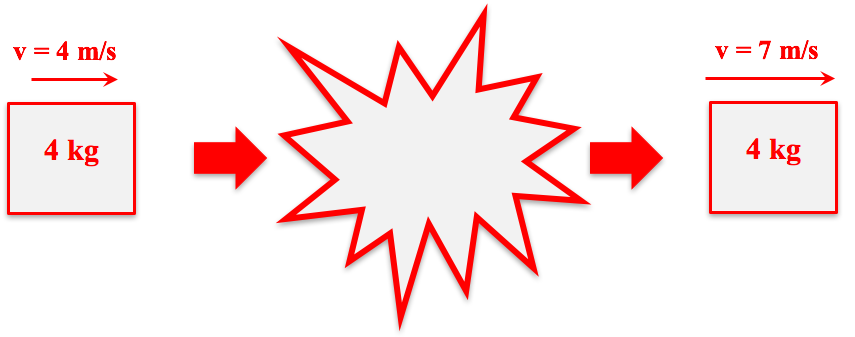

Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +11 N•s
b. Impulse = +12 N•s
c. ∆p = +3 kg•m/s
d. F = +3 N, ∆t = 3 s
e. F = +12 N, ∆t = 4 s
Question 21

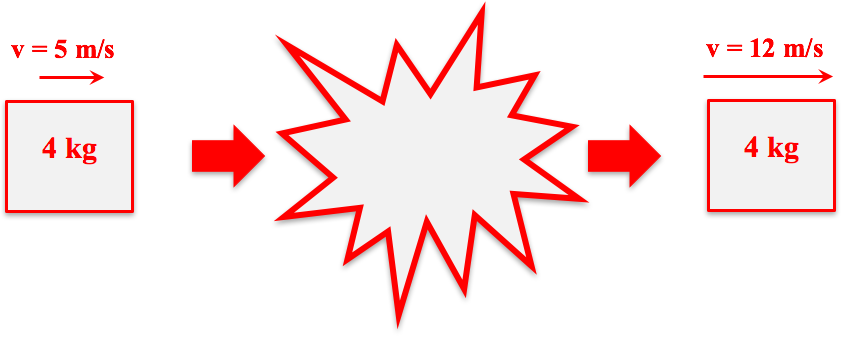

Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +7 N, ∆t = 2 s
b. F = +28 N, ∆t = 4 s
c. Impulse = +17 N•s
d. Impulse = +28 N•s
e. ∆p = +7 kg•m/s
Question Group 8
Question 22

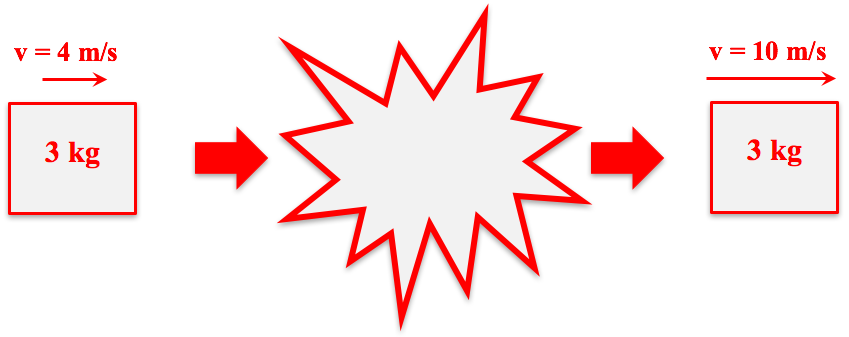

Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +14 N•s
b. Impulse = +18 N•s
c. ∆p = +42 kg•m/s
d. F = +18 N, ∆t = 3 s
e. F = +40 N, ∆t = 3 s
Question 23
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +48 kg•m/s
b. Impulse = +16 N•s
c. Impulse = +24 N•s
d. F = +24 N, ∆t = 3 s
e. F = +48 N, ∆t = 3 s
Question 24
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +60 kg•m/s
b. Impulse = +20 N•s
c. Impulse = +24 N•s
d. F = +20 N, ∆t = 3 s
e. F = +24 N, ∆t = 3 s
Question Group 9
Question 25
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +40 kg•m/s
b. ∆p = +8 kg•m/s
c. Impulse = +16 N•s
d. F = +12 N, ∆t = 4 s
e. F = +60 N , ∆t = 3.0 s
Question 26
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +9 N, ∆t = 6 s
b. F = +45 N, ∆t = 1.5 s
c. ∆p = +15 kg•m/s
d. ∆p = +3 kg•m/s
e. Impulse = +15 N•s
Question 27
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +12 N, ∆t = 4 s
b. F = +60 N, ∆t = 3.0 s
c. ∆p = +40 kg•m/s
d. ∆p = +8 kg•m/s
e. Impulse = +16 N•s
Question Group 10
Question 28
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +18 kg•m/s
b. ∆p = +30 kg•m/s
c. F = +9 N, ∆t = 1 s
d. Impulse = +9 kg•m/s
e. Impulse = +24 kg•m/s
Question 29
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +6 N, ∆t = 1 s
b. ∆p = +12 kg•m/s
c. ∆p = +28 kg•m/s
d. Impulse = +6 kg•m/s
e. Impulse = +20 kg•m/s
Question 30
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +10 N, ∆t = 1 s
b. Impulse = +10 kg•m/s
c. Impulse = +30 kg•m/s
d. ∆p = +20 kg•m/s
e. ∆p = +40 kg•m/s
Question Group 11
Question 31
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +18 N, ∆t = 2 s
b. F = +6 N, ∆t = 1 s
c. Impulse = +1 N•s
d. Impulse = + 6 N•s
e. ∆p = +14 kg•m/s
Question 32
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = + 4 N•s
b. Impulse = +0.67 N•s
c. ∆p = +20 kg•m/s
d. F = +12 N, ∆t = 2 s
e. F = +4 N, ∆t = 1.5 s
Question 33
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +30 N, ∆t = 2 s
b. F = +10 N, ∆t = 2 s
c. Impulse = + 10 N•s
d. Impulse = +1.67 N•s
e. ∆p = +14 kg•m/s
Question Group 12
Question 34
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = -32 N, ∆t = 2 s
b. F = -16 N, ∆t = 2 s
c. Impulse = -48 N•s
d. ∆p = -8 kg•m/s
e. ∆p = -8 kg•m/s
Question 35
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = -4 kg•m/s
b. ∆p = -16 kg•m/s
c. F = -16 N, ∆t = 2 s
d. F = -16 N, ∆t = 1 s
e. Impulse = -64 N•s
Question 36
Pre- and post-collision information is shown. Identify the collision parameters that are consistent with the indicated change in momentum. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = -80 N•s
b. ∆p = -4 kg•m/s
c. ∆p =-20 kg•m/s
d. F = -16 N, ∆t = 2 s
e. F = -32 N, ∆t = 2 s
Wizard Difficulty Level
Question Group 13
Question 37
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +8 N•s
b. Impulse = -8 N•s
c. F = +4 N, ∆t = 2 s
d. ∆p = +24 kg•m/s
e. F = + 32 N, ∆t = 0.5 s
Question 38
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +32 kg•m/s
b. Impulse = +18 N•s
c. Impulse = -8 N•s
d. F = + 6 N, ∆t = 2 s
e. F = +48 N, ∆t = 0.5 s
Question 39
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +32 kg•m/s
b. Impulse = +8 N•s
c. Impulse = -8 N•s
d. F = + 48 N, ∆t = 0.5 s
e. F = +4 N, ∆t = 2 s
Question Group 14
Question 40
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +8 N, ∆t = 1 s
b. F = +16 N, ∆t = 2 s
c. ∆p = -8 kg•m/s
d. ∆p = -48 kg•m/s
e. Impulse = -40 N•s
Question 41
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = -48 N•s
b. F = +12 N, ∆t = 1 s
c. F = +14 N, ∆t = 2 s
d. ∆p = -28 kg•m/s
e. ∆p = -60 kg•m/s
Question 42
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +8 N, ∆t = 1 s
b. ∆p = -48 kg•m/s
c. ∆p = -8 kg•m/s
d. F = +16 N, ∆t = 2 s
e. Impulse = -40 N•s
Question Group 15
Question 43
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +60 kg•m/s
b. F = +5 N, ∆t = 2 s
c. F = +20 N, ∆t = 2 s
d. Impulse = -60 N•s
e. Impulse = -50 N•s
Question 44
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = -90 N•s
b. Impulse = -75 N•s
c. ∆p = +60 kg•m/s
d. F = +5 N, ∆t = 3 s
e. F = +90 N, ∆t = 0.5 s
Question 45
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +15 N, ∆t = 2 s
b. Impulse = -90 N•s
c. ∆p = +30 kg•m/s
d. F = +20 N, ∆t = 1 s
e. Impulse = -60 N•s"]
Question Group 16
Question 46
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +12 N, ∆t = 1 s
b. F = +48 N, ∆t = 0.5 s
c. F = +24 N, ∆t = 2 s
d. Impulse = -12 N•s
e. ∆p = +108 kg•m/s
Question 47
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = +36 N, ∆t = 2 s
b. F = +12 N, ∆t = 1 s
c. F = +24 N, ∆t = 2 s
d. Impulse = -24 N•s
e. ∆p = +120 kg•m/s
Question 48
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +12 N•s
b. ∆p = +48 kg•m/s
c. F = +36 N, ∆t = 2 s
d. F = -12 N, ∆t = 2 s
e. F = +96 N, ∆t = 0.5 s
Question Group 17
Question 49
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +48 kg•m/s
b. ∆p = +32 kg•m/s
c. F = +45 N, ∆t = 4 s
d. F = 32 N, ∆t = 0.5 s
e. Impulse 32 N•s
Question 50
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = 16 N, ∆t = 2 s
b. F = +96 N, ∆t = 2 s
c. ∆p = +112 kg•m/s
d. ∆p = +48 kg•m/s
e. Impulse 26 N•s
Question 51
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. ∆p = +16 kg•m/s
b. ∆p = +224 kg•m/s
c. F = +88 N, ∆t = 2 s
d. F = 48 N, ∆t = 2 s
e. Impulse 24 N•s
Question Group 18
Question 52
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = -90 N, ∆t = 2 s
b. ∆p = +30 kg•m/s
c. Impulse = -75 N•s
d. F = +60 N, ∆t = 2 s
e. Impulse = -30 N•s
Question 53
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. F = -120 N, ∆t = 2 s
b. Impulse = -40 N•s
c. F = -80 N, ∆t = 3 s
d. ∆p = +40 kg•m/s
e. Impulse = +80 N•s
Question 54
For the given pre- and post-collision information, identify the collision parameters that are consistent with the indicated momentum change. Pick two sets of parameters. (A + sign indicates a rightward direction; a - sign indicates a leftward direction.)
a. Impulse = +30 N•s
b. F = -150 N, ∆t = 2 s
c. ∆p = -60 kg•m/s
d. F = -90 N, ∆t = 2 s
e. Impulse = -90 N•s
